630 Ton Scrap Metal Shear Baler with 5000×1750×950mm Press Room for Steel Scrap Recycling and Furnace Charge Preparation

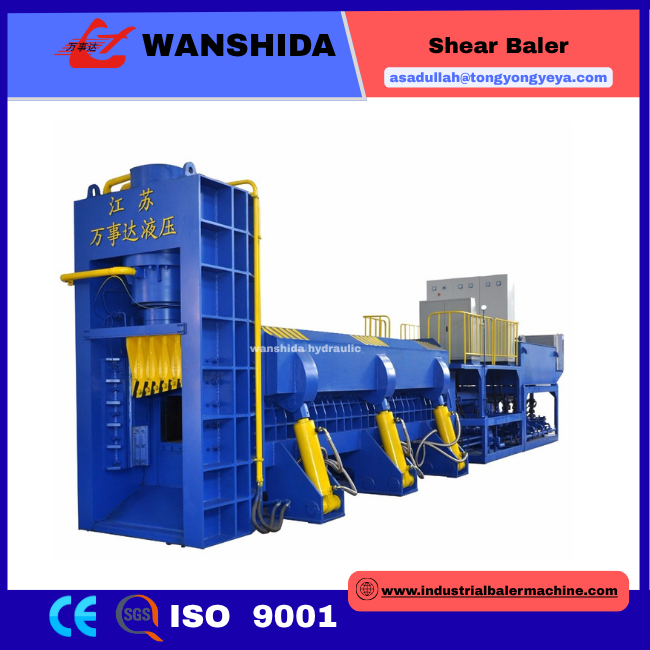

The Y83Q-6300C scrap metal shear baler is a heavy duty hydraulic recycling machine designed for large scrap yards, steel recycling centers, metal processing plants, dismantling companies, and steel smelting plants. It combines scrap compression, baling, shearing, and discharge into one integrated system, making loose and irregular scrap metal easier to store, transport, and reuse as furnace charge.

With a 630 ton pushing and shearing force, a maximum working pressure of 20MPa, and a large press room open size of 5000×1750×950mm, this hydraulic scrap metal shear baler is suitable for processing long and bulky scrap materials up to 5 meters in length. It can cold press waste steel, scrap iron, wire steel, thin steel plates, angle iron, channel steel, round steel, I-beam scrap, and other medium-light metal materials into compact rectangular bales, then cut them into required lengths.

The Y83Q-6300C offers a processing capacity of 9–12 tons per hour and a cutting speed of 4–6 times per minute, making it ideal for continuous industrial scrap processing. Equipped with a 220kW motor and an air cooling hydraulic oil cooling system, the machine is designed for stable long-time operation and reliable hydraulic performance.

For customers who need to reduce scrap volume, improve transportation efficiency, prepare qualified furnace charge, and increase scrap metal recycling productivity, the Y83Q-6300C hydraulic scrap metal shear baler is a powerful and practical solution.

Cause

In scrap metal recycling and furnace charge preparation, many customers face similar challenges:

1. Loose scrap takes too much space
   Waste steel, scrap iron, metal offcuts, and structural scrap are bulky and irregular, making storage and loading inefficient.
2. Manual cutting is slow and risky
   Flame cutting or manual cutting requires more labor, increases safety risks, and reduces production efficiency.
3. High transportation cost
   Uncompressed scrap has low loading density, which increases truck, container, and freight costs.
4. Irregular furnace charge size
   Steel mills and smelting plants often require uniform, compact, and easy-to-feed scrap material.
5. Ordinary balers cannot handle long scrap and section steel efficiently
   For angle iron, channel steel, round steel, I steel, and steel plates, a shear baler is more efficient than a standard metal baler.

Solution

The Y83Q-6300C scrap metal shear baler provides an integrated solution by combining a large feeding chamber, strong hydraulic compression, and high-force shearing.

Scrap metal can be loaded directly into the press chamber by crane grab or other feeding equipment. After compression, the machine forms loose scrap into rectangular bales and then cuts the compressed scrap into suitable lengths. This process reduces the volume of waste metal, improves loading density, and produces cleaner furnace charge for steel plants.

Compared with traditional manual cutting or single-function baling equipment, the Y83Q-6300C provides higher efficiency, better safety, more stable finished sizes, and lower overall handling cost.

Specifications

Scrap Size Can Be Cut

Application

The Y83Q-6300C hydraulic scrap metal shear baler is widely used in:

1. Scrap metal recycling yards
   For processing waste steel, scrap iron, steel wire, thin metal sheets, and mixed metal scrap.
2. Steel mills and smelting plants
   For producing compact and qualified furnace charge with regular size and improved loading efficiency.
3. Metal processing factories
   For recycling steel offcuts, plates, profile scrap, and production waste.
4. Dismantling and demolition recycling companies
   For handling medium-light structural scrap from vehicles, machinery, and construction materials.
5. Large scrap collection centers
   For high-capacity and continuous scrap metal processing.

How It Works

The Y83Q-6300C scrap metal shear baler works through a hydraulic compression and shearing process. First, loose scrap metal is loaded into the press room. The hydraulic cylinders push and compress the material into a compact rectangular shape. Once the scrap is compressed to the required size, the shearing blade cuts the bale into suitable lengths.

The entire process is performed by cold pressing without heating the material. This helps reduce energy consumption while improving safety and production efficiency. The finished scrap bales are easier to stack, transport, and feed into smelting furnaces.

Core Advantages

1. 630 Ton Shearing Force for Heavy Duty Scrap Processing

The machine provides powerful pushing and shearing force, making it suitable for various scrap steel materials, including angle iron, channel steel, round steel, I steel, and steel plates.

2. Large 5000mm Press Chamber

The 5000×1750×950mm press room allows long and bulky scrap materials to be loaded more easily, reducing the need for pre-cutting and improving feeding efficiency.

3. 9–12 Tons Per Hour Capacity

With a high processing capacity, the Y83Q-6300C is suitable for recycling companies and steel plants that need continuous and high-volume scrap processing.

4. Baling and Shearing in One Machine

Compared with separate baling and cutting equipment, this hydraulic scrap shear baler saves space, reduces handling steps, and improves overall productivity.

5. Air Cooling Hydraulic System

The air cooling system helps maintain stable hydraulic oil temperature during long working hours, improving machine reliability.

6. Regular Bale Size for Easy Transport

The finished bale size of 500–800×600×300–500mm makes scrap easier to load, stack, transport, and use as furnace charge.

How To Choose

When choosing a scrap metal shear baler, customers should consider the following factors:

If your main materials are thin steel scrap, scrap iron, wire steel, profile steel, and medium-light metal scrap, and your target capacity is around 9–12 tons per hour, the Y83Q-6300C scrap metal shear baler is a suitable choice.

FAQ

Q1: What materials can the Y83Q-6300C scrap metal shear baler process?

It can process waste steel, scrap iron, wire steel, thin steel plates, angle iron, channel steel, round steel, I steel, and other medium-light scrap metal materials.

Q2: What is the capacity of this machine?

The reference capacity is 9–12 tons per hour. Actual capacity depends on scrap type, feeding method, material density, operator experience, and cutting length.

Q3: Does the machine need to heat the scrap before processing?

No. The machine uses cold pressing technology and works at normal temperature, which helps save energy and improve safety.

Q4: Can the machine be customized?

Yes. The machine can be customized according to local voltage, control system, bale size, feeding method, cooling system, and actual scrap material conditions.

Q5: Is this machine suitable for steel mills?

Yes. The Y83Q-6300C can produce compact and regular furnace charge, making it suitable for steel mills, smelting plants, and large recycling companies.

After-Sales Service

We provide complete after-sales support for the Y83Q-6300C hydraulic scrap metal shear baler, including installation guidance, operation training, maintenance support, spare parts supply, and lifetime technical assistance.

With strong manufacturing experience in hydraulic scrap metal recycling equipment, we can provide customized solutions according to your scrap type, capacity requirement, working site layout, and local operating conditions.
